Hardware for Sliding Doors and Windows

A Sill Track Cover is used in all styles of sliding doors and windows, for both outdoor and indoor applications. Sill Track Covers fit over or in a specific area of the extruded sill track that the door rollers ride on, to protect it. Our standard caps and Stainless Steel Track covers that are available are the #1 and #2 styles. We also have over 20 styles for both standard sill track extrusions and also custom styles for non-standard sill track extrusions. Some of these styles are made with Johnson Bros. owned tooling available for use and other styles, not available for others, were designed for customers who purchased custom tooling for their own proprietary use. A sill Cap and Stainless Steel Track Cover can be made with a snap-on or slide-on fit for the track extrusion you are using. Slight variations can be made to standard style cap and cover dimensions for a more customized fit at no extra charge. Caps and Stainless Steel Track covers are automatically cut-to-length in line for standard and custom width sliding door and window track extrusions. Our sill covers make ideal replacement window and door hardware for French doors, patio doors and other types of sliding doors.

The majority of Sill Track Caps and Track Covers are produced with stainless steel for both indoor and outdoor windows and sliding doors. The stainless alloy most commonly used is a non-magnetic, T304, which holds up very well against corrosion. A T430 magnetic stainless alloy can also be used for less expense, but also with less resistance to corrosion. If you are using a cap or cover now, you can determine what alloy of stainless you have by seeing if a magnet is attracted to it. Other, even more corrosion resistant stainless alloys can be used, besides the standard T304 alloy, for salty environments. Brass is sometimes used for extra lubricity in indoor, heavy duty, sliding door applications, and are often made into track extrusion inserts instead of caps.

More about Sill Track Covers for Sliding Doors and Windows
Our most commonly used standard sill track cap and Stainless Steel Track cover styles are produced in .018" and .016" thicknesses. Tracks, Track Caps and Covers can be as thick as .125" on custom styles, if necessary. Some track extrusion applications may use our track inserts instead of caps in an area of the track extrusion where the door rollers will ride. This differs from caps and covers in that the track extrusion is made with an area missing that the insert is designed to fit into. Custom Caps, Stainless Steel Track Covers, and Inserts are frequently provided to unique customer requirements with new tooling being manufactured to produce them. Here are some reasons you should use caps, covers or inserts for your door and window, sill roller track extrusions.

The benefits of a Stainless Steel Sill Track Cover for Sliding Doors and Windows

  • Stainless Steel Track Covers are designed to prevent wear on sill track extrusions and door rollers.
  • Sill Track Covers provides smoother door operation.
  • Helps prevent delivery and construction site damage.
  • Snap-on & in styles for easy post installation as well as slide-on fit.
  • Sill Track Covers can be cut to specific door and window widths.
  • A sill cover can transform a damaged track to a working track to prevent frame replacement.
  • Available in durable T304 stainless or less expensive T430 stainless alloy.
  • Metal thicknesses for caps and Stainless Steel Track Covers can be reduced for cost savings.
  • Samples of standard styles available.
  • Just-In-Time and expedited shipping available on all Sill Track Covers.
  • Caps & Stainless Steel Track Covers can be modified for custom fit or new tooling made for special styles.

Contact Johnson Brothers for a quote on stainless steel track cover, sill covers, sill cover, sliding door covers, stainless steel door hardware, patio door hardware, replacement door hardware, replacement window hardware, sliding window hardware, door track hardware, French door hardware, sliding door hardware, stainless door hardware, patio door track, patio doors, sliding doors, door tracks and replacement tracks. Johnson Bros. serves US, Canadian and International customers. Call today!

To see more of our products please see our catalog information.


Parts are produced to order and stock reserve only kept for large blanket order shipping releases. Existing samples may or may not be available. Prototypes for large orders are feasible.

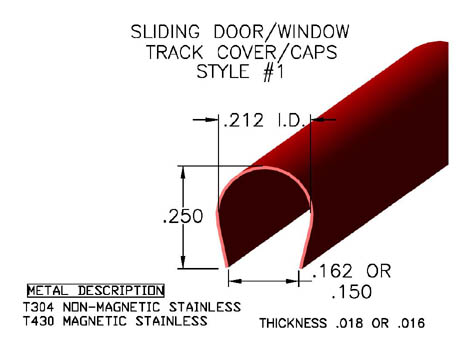

[SDTC-1002]([SDTC-1002.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1002 |   CAD File
[SDTC-1002-5]([SDTC-1002-5.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1002-5 |   CAD File
[SDTC-1003]([SDTC-1003.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1003 |   CAD File
[SDTC-1003-5]([SDTC-1003-5.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1003-5 |   CAD File
[SDTC-1004]([SDTC-1004.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1004 |   CAD File
[SDTC-1004-5]([SDTC-1004-5.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1004-5 |   CAD File
[SDTC-1005]([SDTC-1005.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1005 |   CAD File
[SDTC-1007]([SDTC-1007.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1007 |   CAD File
[SDTC-1009]([SDTC-1009.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1009 |   CAD File
[SDTC-1011]([SDTC-1011.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1011 |   CAD File
[SDTC-1012]([SDTC-1012.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1012 |   CAD File
[539]([539.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  539 |   CAD File
[SDTC-1014]([SDTC-1014.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1014 |   CAD File
[512]([512.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  512 |   CAD File
[927]([927.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  927 |   CAD File
[421]([421.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  421 |   CAD File
[422]([422.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  422 |   CAD File
[230]([230.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  230 |   CAD File
[570]([570.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  570 |   CAD File

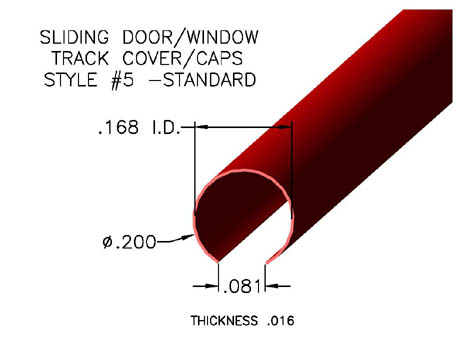

[SDTC-1006]([SDTC-1006.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1006 |   CAD File
[919]([919.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  919 |   CAD File
[905]([905.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  905 |   CAD File
[861]([861.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  861 |   CAD File
[858]([858.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  858 |   CAD File
[700]([700.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  700 |   CAD File
[571]([571.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  571 |   CAD File
[566]([566.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  566 |   CAD File
[561]([561.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  561 |   CAD File
[920]([920.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  920 |   CAD File
[941]([941.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  941 |   CAD File
[565-C]([565-C.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  565-C |   CAD File
[JC-1002]([JC-1002.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  JC-1002 |   CAD File

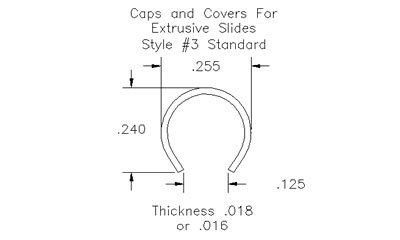

[CCES-1004]([CCES-1004.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  CCES-1004 |   CAD File
[570-E]([570-E.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  570-E |   CAD File
[570-D]([570-D.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  570-D |   CAD File
[570-C]([570-C.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  570-C |   CAD File
[570-B]([570-B.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  570-B |   CAD File
[565-A]([565-A.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  565-A |   CAD File
[558]([558.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  558 |   CAD File
[550]([550.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  550 |   CAD File
[312]([312.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  312 |   CAD File
[311]([311.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  311 |   CAD File
[280]([280.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  280 |   CAD File
[256]([256.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  256 |   CAD File
[234]([234.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  234 |   CAD File
[233]([233.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  233 |   CAD File
[216]([216.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  216 |   CAD File
[197]([197.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  197 |   CAD File
[190]([190.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  190 |   CAD File
[161]([161.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  161 |   CAD File
[155]([155.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  155 |   CAD File
[146]([146.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  146 |   CAD File
[141]([141.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  141 |   CAD File
[313]([313.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  313 |   CAD File
[319]([319.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  319 |   CAD File
[548]([548.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  548 |   CAD File

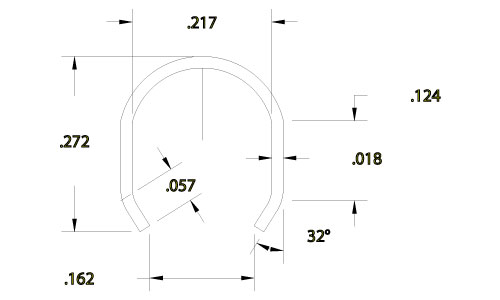

[505]([505.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  505 |   CAD File
[504]([504.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  504 |   CAD File
[503]([503.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  503 |   CAD File
[SDTC-1015]([SDTC-1015.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  SDTC-1015 |   CAD File
[426]([426.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  426 |   CAD File
[425]([425.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  425 |   CAD File
[424]([424.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  424 |   CAD File
[355]([355.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  355 |   CAD File
[321]([321.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  321 |   CAD File
[320]([320.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  320 |   CAD File
[133]([133.jpg]) - Stainless Steel Sill Track Caps & Covers
PDF  |  133 |   CAD File
