Hem Bar, Bottom Bar & Hem-Line Channels

Request for QuoteSee CAD Print Representatives

Bottom bars in this style are made to have the wood slat, attached to the transparent mylar shade material, slide into the slightly open, split seam in the bar. This assembly has a smooth slide fit without snagging. This Moulding or Split and Hemmed Seam rectangular tube can be used as Bottom Rails for other Shade material and Blinds and Maps. We supply many styles and diameters of Roller Tubing that can be used with all of these assemblies as seen under our product line called "Shade Roller Tubing". The Bottom Bars are made from Prepainted Tempered Steel to avoid deflection over a long span. They are carton packed with interleaf, to avoid scratching the painted finish, and placed and banded with 2x4 framing on wooden platform pallets to avoid damage in shipping.

Bottom Bar
Bottom Bar, Hemline Channel for the transparent mylar shade industry

To see more of our products please see our catalog information.


Parts are produced to order and stock reserve only kept for large blanket order shipping releases. Existing samples may or may not be available. Prototypes for large orders are feasible.

[245]([245.jpg]) - Hem Bar, Bottom Bar & Hem-Line Channels
PDF  |  245 |   CAD File
[082009-01]([082009-01.jpg]) - Hem Bar, Bottom Bar & Hem-Line Channels
PDF  |  082009-01 |   CAD File
[HL-1002]([HL-1002.jpg]) - Hem Bar, Bottom Bar & Hem-Line Channels
PDF  |  HL-1002 |   CAD File
[205]([205.jpg]) - Hem Bar, Bottom Bar & Hem-Line Channels
PDF  |  205 |   CAD File

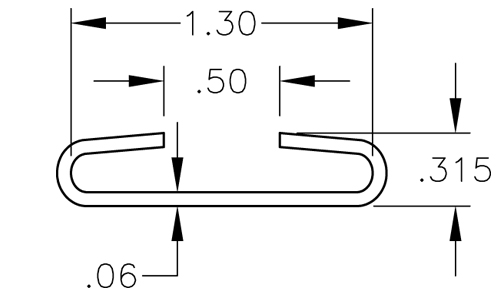

[7722FR-A]([7722FR-A.jpg]) - Hem Bar, Bottom Bar & Hem-Line Channels
